Base class for Synapse applications. More...

#include <app.hpp>

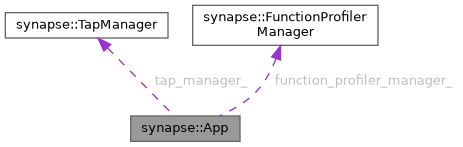

Collaboration diagram for synapse::App:

[legend]

Public Member Functions
	App ()
	Default constructor.
	App (const std::string &configuration_path)
	Constructor with custom configuration path.
virtual	~App ()=default
	Virtual destructor.
template<typename T>
bool	create_tap (const std::string &name)
	Creates a tap for publishing messages.
template<typename T>
bool	publish_tap (const std::string &name, const T &message)
	Publishes a message to a tap.
template<typename T>
bool	create_consumer_tap (const std::string &name, const std::function< void(const T &message)> &callback)
	Creates a consumer tap for receiving messages Tip: Don't do a lot of work in the callback, it will be called in a separate thread Instead, just queue the message for later processing.
virtual bool	setup ()=0
	Setup function to be implemented by derived classes.
virtual bool	start ()
	Starts the application.
virtual void	stop ()
	Stops the application.

Protected Member Functions
virtual bool	setup_reader (const uint32_t node_id)
	Sets up the data reader.
virtual bool	setup_publisher (const PublisherType &publisher_type, const std::string &publisher_endpoint)
	Sets up the data publisher.
bool	load_device_configuration (const std::string &path)
	Loads device configuration from file.
bool	enable_function_profiling (const std::chrono::milliseconds &period)
	Enables function profiling.
void	start_profile (const std::string &name)
	Starts profiling a function.
void	stop_profile (const std::string &name)
	Stops profiling a function.
void	print_profile (const std::string &name)
	Prints profile information.
bool	get_app_config (std::function< bool(const synapse::ApplicationNodeConfig &)> validator, synapse::ApplicationNodeConfig &output_config)
	Gets the application parameters from the device configuration.
void	disable_log_streaming ()
virtual void	main ()=0
	Main loop to be implemented by derived classes.

Protected Attributes
std::atomic< bool >	node_running_ {false}
	Flag indicating if the node is running.
zmq::context_t	zmq_context_
	ZMQ context for communication.
std::shared_ptr< synapse::ZMQDataReader >	data_reader_ {nullptr}
	Data reader for receiving data.
std::shared_ptr< synapse::DataPublisher >	data_publisher_ {nullptr}
	Data publisher for sending data.
TapManager	tap_manager_
	Manager for handling taps.
std::shared_ptr< synapse::log::SynapseLogSink< std::mutex > >	log_sink_ {nullptr}
	Custom log sink for capturing and streaming application logs.
std::optional< uint64_t >	log_subscription_id_ {std::nullopt}
	ID for the log streaming subscription.
synapse::DeviceConfiguration	device_configuration_
	Device configuration.
synapse::FunctionProfilerManager	function_profiler_manager_
	Function profiler manager.
std::thread	function_profiling_thread_
	Thread for function profiling.
std::atomic< bool >	function_profiling_enabled_ {false}
	Flag indicating if function profiling is enabled.
std::thread	main_loop_thread_
	Thread for the main loop.

Detailed Description

Base class for Synapse applications.

Provides core functionality for data reading/publishing, tap management, and performance profiling.

Constructor & Destructor Documentation

◆ App()

synapse::App::App ( const std::string & configuration_path )

explicit

Constructor with custom configuration path.

Parameters

configuration_path Path to device configuration file

Member Function Documentation

◆ create_consumer_tap()

template<typename T>

bool synapse::App::create_consumer_tap	(	const std::string &	name,
		const std::function< void(const T &message)> &	callback )

inline

Creates a consumer tap for receiving messages Tip: Don't do a lot of work in the callback, it will be called in a separate thread Instead, just queue the message for later processing.

Template Parameters

T	Protobuf message type

Parameters

name	Name of the tap
callback	Function to be called when a message is received

Returns: true if tap was created successfully, false otherwise

◆ create_tap()

template<typename T>

bool synapse::App::create_tap ( const std::string & name )

inline

Creates a tap for publishing messages.

Template Parameters

T	Protobuf message type

Parameters

name	Name of the tap

Returns: true if tap was created successfully, false otherwise

◆ enable_function_profiling()

bool synapse::App::enable_function_profiling ( const std::chrono::milliseconds & period )

protected

Enables function profiling.

Parameters

period Period for profiling

Returns: true if profiling was enabled successfully, false otherwise

◆ get_app_config()

bool synapse::App::get_app_config	(	std::function< bool(const synapse::ApplicationNodeConfig &)>	validator,
		synapse::ApplicationNodeConfig &	output_config )

inlineprotected

Gets the application parameters from the device configuration.

Note: This function will try to load and validate the parameters from the device configuration

Parameters

validator	Function to validate the parameters (takes const synapse::ApplicationNodeConfig& and returns bool)
output_config	Application node configuration to populate

Returns: true if parameters were retrieved successfully, false otherwise

◆ load_device_configuration()

bool synapse::App::load_device_configuration ( const std::string & path )

protected

Loads device configuration from file.

Parameters

path	Path to configuration file

Returns: true if configuration was loaded successfully, false otherwise

◆ print_profile()

void synapse::App::print_profile ( const std::string & name )

protected

Prints profile information.

Parameters

name	Name of the function

◆ publish_tap()

template<typename T>

bool synapse::App::publish_tap	(	const std::string &	name,
		const T &	message )

inline

Publishes a message to a tap.

Template Parameters

T	Protobuf message type

Parameters

name	Name of the tap
message	Message to publish

Returns: true if message was published successfully, false otherwise

◆ setup()

virtual bool synapse::App::setup ( )

pure virtual

Setup function to be implemented by derived classes.

Returns: true if setup was successful, false otherwise

◆ setup_publisher()

bool synapse::App::setup_publisher	(	const PublisherType &	publisher_type,
		const std::string &	publisher_endpoint )

protectedvirtual

Sets up the data publisher.

Parameters

publisher_type	Type of publisher
publisher_endpoint	Endpoint for the publisher

Returns: true if publisher was set up successfully, false otherwise

◆ setup_reader()

bool synapse::App::setup_reader ( const uint32_t node_id )

protectedvirtual

Sets up the data reader.

Parameters

node_id ID of the node to read from

Returns: true if reader was set up successfully, false otherwise

◆ start()

bool synapse::App::start ( )

virtual

Starts the application.

Returns: true if application started successfully, false otherwise

◆ start_profile()

void synapse::App::start_profile ( const std::string & name )

protected

Starts profiling a function.

Parameters

name	Name of the function

◆ stop_profile()

void synapse::App::stop_profile ( const std::string & name )

protected

Stops profiling a function.

Parameters

name	Name of the function

The documentation for this class was generated from the following files:

include/synapse-app-sdk/app/app.hpp
src/app/app.cpp
